Apollo 400+
5th Edition Compliant
The Apollo 400+ features a comprehensive range of electrical safety tests with user configurable test sequences and has storage for up to 2,000 test records. Compatible with our Seaward PATGuard 3 software for record keeping and reporting.
Now updated to fully comply with the 5th Edition Code of Practice.
Free 5th Edition Firmware
More about the Apollo 400+
This PAT tester is a cost-effective downloadable solution that features a comprehensive range of electrical safety tests to ensure compliance with the 5th Edition Code of Practice.
Remote data transfer and USB download make data management easy and efficient while onsite or in the office. The Apollo 400+ has the ability to perform point-to-point tests for quick testing of fixed equipment.
The Apollo 400+ is ideal for mid-volume PAT testing where detailed records are required.
Streamline the PAT testing process further by using the Apollo 400+ with a compatible wireless label printer, barcode scanner and PATGuard 3 software.
Apollo 400+ PAT Testing Kits

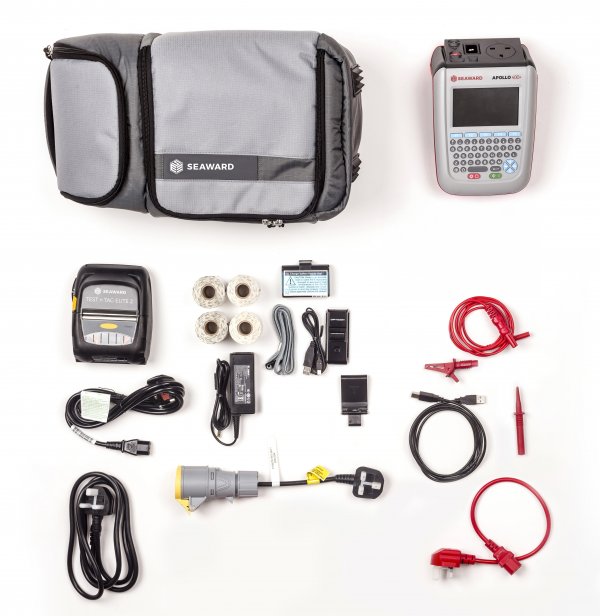

The Apollo 400+ Elite Kit
This PAT testing kit includes:
- Apollo 400+ PAT Tester
- Test n Tag Elite 2 Printer
- 2D Bluetooth Barcode Scanner
- 2x Elite durable labels 25mm
- 2x Elite durable labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Part number: 380A9906
The Elite Kit is also available with PATGuard 3 software. Part number: 380A9907

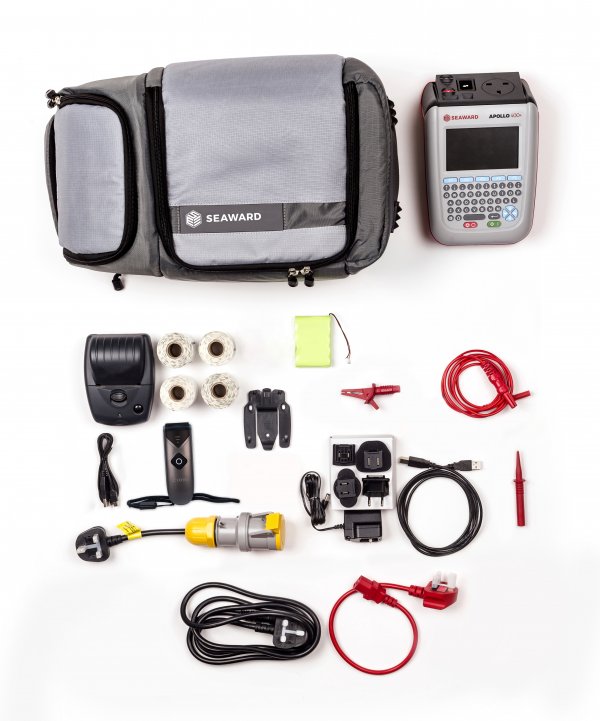

The Apollo 400+ Pro Kit
This PAT testing kit includes:
- Apollo 400+ PAT Tester
- Test n Tag Pro Printer
- 1D Bluetooth Barcode Scanner
- 2x Pro labels 25mm
- 2x Pro labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Part number: 380A9902
The Pro Kit is also available with PATGuard 3 software. Part number: 380A9903
Compare the Apollo series
| General Features | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| 5th Edition Compliant |  |
|
|
| Battery & mains powered | |
|
|
| Colour screen & QWERTY keypad | |
|
|
| Large internal memory | Up to 2,000 records | Up to 10,000 records | Up to 50,000 records & 2,000 visual inspection images |
| Bluetooth scanner & printer compatible | |
|
|
| Password controlled user accounts | |
|
|
| Set up multiple user accounts with varying levels of privileges | |
|
|
| Clone facility to set up multiple testers | |
|
|
| Checkbox supplied as standard | |
|
|
| Test Inspection Features | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| Auto-increment asset ID | |
|
|
| PAT Setup option to allow for custom menus | |
|
|
| Enter asset description after test using keypad or barcode scanner | |
|
|
| Comprehensive electrical safety test features | |
|
|
| Point to point measurement (Rpe & IR) | Optional accessory required | |
|
| User configurable electrical test/visual inspection sequences | 25 | 100 | 100 |
| User set sites & locations | 50 | 100 | 100 |
| Risk based retest period calculator | |
|
|
| User definable comments lines against test records | 4 | 4 | |
| Configurable checklists for any workplace test or inspection (user tests) | |
|
|
| On-board camera | |
||
| Universal risk assessment | |
||
| Health & safety certificates | |
||
| Data transfer features | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| 1D & 2D scanner connectivity | Reads 1D data only | |
|
| Read 2D barcode labels with 2D scanner | |
|
|
| RFID reader connectivity | |
||
| Print pass & fail labels with 1D barcode | |
|
|
| Print pass & fail labels with 2D barcode | |
|
|
| Add your company logo to labels (large 1D labels only) | |
|
|
| Select various label formats to print | 6 | 6 | 6 |
| Download to PC via USB cable | |
|
|
| Data transfer via USB flash drive | |
||
| Filter results to be downloaded | |
|
|
| Upload previous results to tester for retest | |
|
Apollo 400+ Firmware Update
It's Arrived! New 5th Edition Firmware
If you're already an Apollo Series user you can update your firmware to the latest version 4.1.7 (5th Edition) where you'll be able to benefit from the new selection of test sequences created in response to the newly released 5th Edition IET code of practice. Installing this firmware will also allow your existing 4th Ed. Apollo to test up to 5mA for protective conductor current and 3.5mA* touch current.
*5mA for new 5th edition products.
Case Studies
Going Underground for Seaward's PAT
Investment in advanced Seaward PAT (portable appliance testing) kits is helping London Underground comply with important electrical safety requirements. London Underground, one th...
Seaward’s Apollo Rockets Improved PAT Testing at Local Council
Oxfordshire City Council’s property maintenance and support services company is ensuring it meets its portable appliance testing (PAT) responsibilities with electrical safety tes...
TECC Enjoys Successful Lift-off with Apollo PAT Test Kits
Investment in the latest appliance testing technology is helping a specialist electrical contracting business to introduce dedicated company-wide testing protocols and standards as...
Request a Quote
Optional Accessories
Technical Specifications
| Earth Continuity (Rpe) | |
|---|---|
| Test Current | +/- 200mA DC |
| Measurement Range | 0.05Ω to 19.99Ω |
| Pass Value | User defined |
| IEC Lead Test | |
|---|---|
| Test Voltage | 5VAC nominal |
| Test | Live / Neutral Checks for o/c, s/c and crossed polarity |
| Touch Current | |
|---|---|
| Test Voltage | Supply voltage, maximum load current 16A |
| Measurement Range | 0.10mA to 5mA |
| Pass Value | User defined |
| Substitute (Alternative) Leakage Current | |
|---|---|
| Test Voltages | >25VAC <50VAC |
| Measurement Range | 0.20mA to 19.99mA |
| Pass Value | User defined |
| Power Socket Test | |
|---|---|
| Voltage Range | 207V – 253VAC |
| Indicates configuration of voltage potential:- | Line potential phase to earth |
| Line potential phase to neutral | Line potential neutral to earth |
| Insulation Resistance (IR) | |
|---|---|
| Test Voltage | 500V / 250VDC @ 1mA nominal |
| Measurement Range | 0.10MΩ to 19.99MΩ |
| Pass Value | User defined |
| Protective Conductor Current/Load | |
|---|---|
| Test Voltage | Supply voltage, maximum load current 16A |
| Measurement Range | 0.25mA to 19.99mA |
| Pass Value | User defined |
| Load Power/Current | |
|---|---|
| Test Voltage | 230V +10%, -15%, maximum load current 16A |
| Test Duration | Programmable up to a maximum of 240s |
| Measurement Range | 0.50A to 16.0A |
| RCD Test | |
|---|---|
| Test Voltage | 230V +10%, -15% |
| Test Current | 30mA / 150mA rms sinusoidal |
| Display Range | 0ms to 2000ms |
| Test Method | Internal isolation to avoid tripping distribution board RCD |
| General | |
|---|---|
| Memory size | up to 2,000 records |
| Weight | 1.5kg |
| Dimensions | 230mm x 150mm x 100mm |
| Power Source | Mains or rechargeable battery pack |
