PR33D Kit
Phasing rods with digital reading for use on systems up to 33kV
- For use on earthed neutral systems up to 33kV

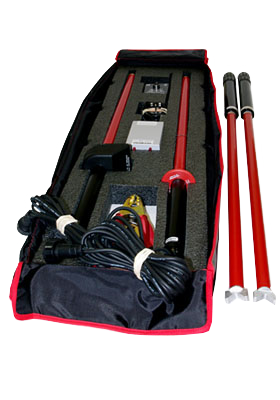

- Kit complete with Proving unit, Extension rods & carry case included
- LCD digital display
- Resin filled, robust construction to industry standards
PR33D
The PR33D is a digital HV potential indicator and phasing stick which can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits, without the interposition of voltage transformers or secondary wiring circuits. It is suitable for use on earthed neutral systems up to 33kV.
The LCD display is powered by an integral rechargeable battery and is supplied complete with battery charger and PH3 proving unit in a bespoke carrying case. Conforming to recommended, creepage and safety standards, the PR33D features high-grade PVC tubing and incorporates totally encapsulated resistor chains.
Accessories are available, including 90º and 120º bent end adaptors for easy access to difficult to reach switchgear.
The PR33D covers a wide range of applications and voltages and is used in many industries such as Power generation, Sub-station maintenance and Switchgear maintenance.
Request a Quote
Optional Accessories
Technical Specifications
| Technical specification | |
|---|---|
| Maximum system voltage | 33kV |
| Maximum voltage to earth | 19kV |
| Threshold voltage | N/A |
| Measuring range | 0.0kV-19.0kV |
| Resolution | 100V |
| Accuracy | +/- 5% |
| Sensitivity | AC/DC |
| Circuit current (IEC 61234-2) | 0.9mA nominal @33kV |
| Dielectric leakage current(IEC 61234-2) | 23uA nominal @ 40kV |
| Length (mm) | 600 |
| Diameter (mm) | 25 |
| Handle length (mm) | 235 |
| Hand guard height (mm) | 23.5 |
| Contact electrode type | Domed |
