SDR11
401A912

SDR11

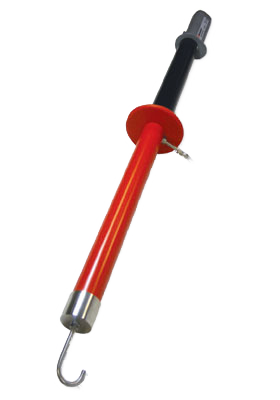

SDR11 HV Discharge Rod

- Safe HV discharge rod for soft damp discharge of cables and / or equipment under test
- Supplied with flexible cable with heavy duty brass clamp for easy earth connection
- Robust single pole device


SDR11 HV Discharge Rod

This instrument will allow you to conduct the safe damp discharge of the residual charge on the cable / equipment by limiting the discharge current.

Each model features high grade glass fibre tubing and incorporates encapsulated resistor chains.

It is supplied as standard with earthing wire (10 sq.mmx 5mtr), yellow green wire and carry case.

Features

  • Safe HV discharge rod for soft damp discharge of cables and / or equipment under test
  • Supplied with flexible cable with heavy duty brass clamp for easy earth connection
  • Robust single pole device
  • No switches
  • Suitable for voltages to 11kV
  • Supplied with cushion soft carrying case

Request a Quote


Technical Specifications

Technical specification
Discharge Voltage11kV AC/DC max
Peak Discharge Current1.1A for 100ms
Bleeder Resistance10k ohm
Discharge Capacitance10 μF
Leakage Current at 35KV AC<50 μA
Discharge Energy3675J
CoolingNeutral
Total Size32mm x 750mm
Weight2.2 kg (Net)
SafetyIEC 61230,
EMC Not Applicable
Temperature-5°C to 70°C
