SDR35
401A910

SDR35

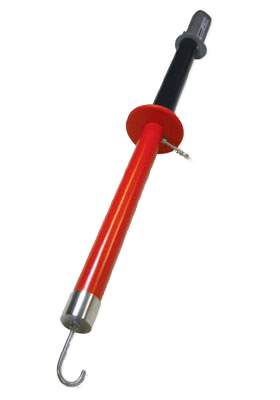

SDR35 HV Discharge Rod

- Safe HV discharge rod for soft damp discharge of cables and / or equipment under test
- Supplied with flexible cable with heavy duty brass clamp for easy earth connection
- Robust single pole device


SDR35 HV Discharge Rod

This instrument will allow you to conduct the safe damp discharge of the residual charge on the cable / equipment by limiting the discharge current.

Each model features high grade glass fibre tubing and incorporates encapsulated resistor chains.

It is supplied as standard with earthing wire (10 sq.mmx 5mtr), yellow green wire and carry case.

Features

  • Safe HV discharge rod for soft damp discharge of cables and / or equipment under test
  • Supplied with flexible cable with heavy duty brass clamp for easy earth connection
  • Robust single pole device
  • No switches
  • Suitable for voltages to 35kV
  • Supplied with cushion soft carrying case

Request a Quote


Technical Specifications

Technical specification
Discharge Voltage35kV AC/DC max
Peak Discharge Current13.5A for 100ms
Bleeder Resistance10k ohm
Discharge Capacitance6 μF
Leakage Current at 35KV AC<50 μA
Discharge Energy3675J
CoolingNeutral
Total Size32mm x 950mm
Weight2.2 kg (Net)
SafetyIEC 61230,
EMC Not Applicable
Temperature-5°C to 70°C
