Apollo 500+ PAT Tester
380A928

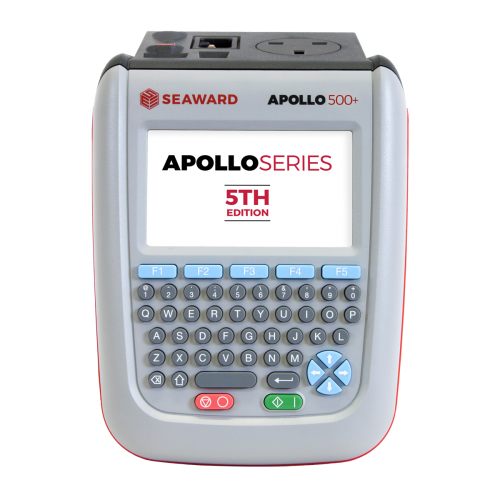

Apollo 500+

5th Edition and BE EN50699 Compliant

The Apollo 500+ features a comprehensive range of electrical safety tests with user configurable test sequences and checklists for PAT, PPM and PPE. It has storage for up to 10,000 test records and is compatible with our Seaward PATGuard 3 software for record keeping and reporting.

- Upload previous asset information for faster re-testing
- Customisable sequences for all PAT, PPM and PPE inspections
- Remotely send data from the field (download and upload)
- Point to point testing for fixed appliances
- Multiple user accounts with permission settings


On-board Data Storage
Store up to 10,000 test records
Risk Assessment Tool
Calculate risk based inspection and test frequencies
Point to Point Testing
For easy testing of fixed equipment
Scan Seaward QR Codes
Compatible with our QR barcode scanner

More about the Apollo 500+

The Apollo 500+ is a great value PAT tester with a comprehensive range of tests, advanced data transfer and storage features. It also has a built-in electrical risk assessment tool to suggest inspection and test frequencies.

With a new processor, testing is now faster and more efficient than ever before, and our new Wifi Hotspot feature means it has never been easier to get results back to your office via your mobile device.

Designed to enable simple, professional and fast PAT testing, with a large memory to store up to 10,000 test records. Great for high volume testing, or if you are retesting a large number of appliances on a regular basis.

For faster and more efficient retesting, the Apollo 500+ can be used with Seaward’s PATGuard 3 software to upload equipment details from your existing database, saving time on data entry in the field.

Printing Seaward QR barcodes, using the Test n Tag Elite 2 printer, enables you to store equipment details on the label, making retesting faster even if data has not been uploaded to the tester.

Apollo 500+ PAT Testing Kits

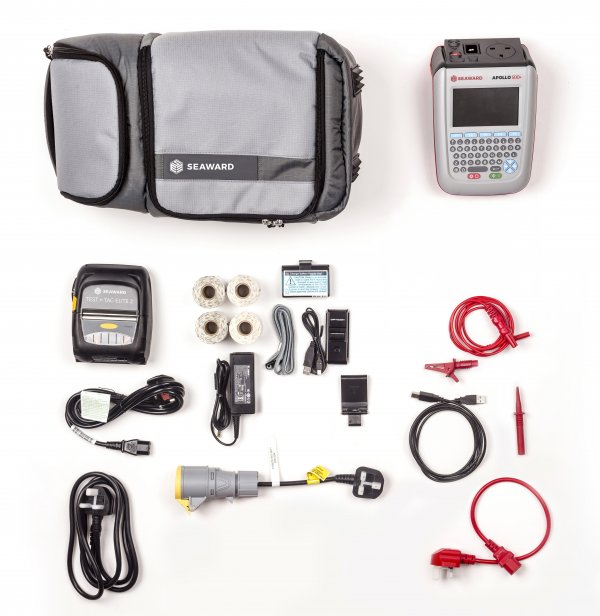

The Apollo 500+ Elite Kit

This PAT testing kit includes:

  • Apollo 500+ PAT Tester
  • Test n Tag Elite 2 Printer
  • 1D/QR Bluetooth Barcode Scanner
  • 2x Elite durable labels 25mm
  • 2x Elite durable labels 75mm
  • Apollo Kit Carry Case
  • 110V Test Adaptor

Part number: 380A9899

The Elite Kit is also available with PATGuard 3 software. Part number: 380A9900

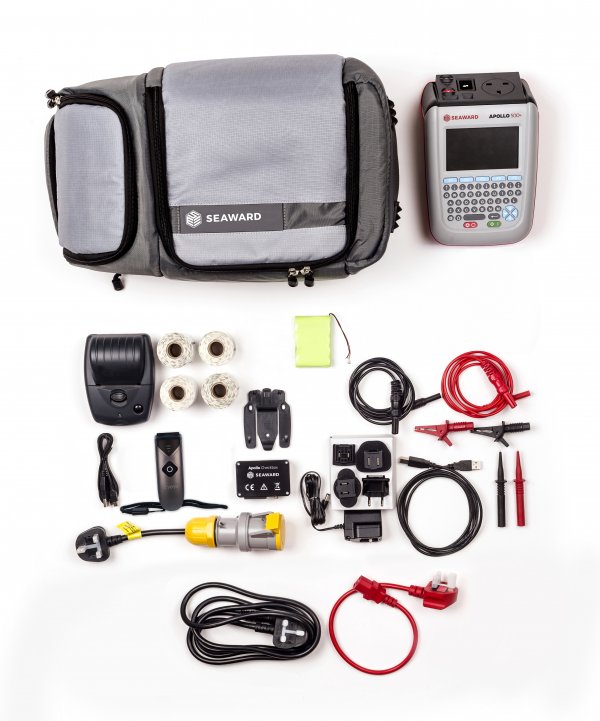

The Apollo 500+ Pro Kit

This PAT testing kit includes:

  • Apollo 500+ PAT Tester
  • Test n Tag Pro Printer
  • 1D Bluetooth Barcode Scanner
  • 2x Pro labels 25mm
  • 2x Pro labels 75mm
  • Apollo Kit Carry Case
  • 110V Test Adaptor

Part number: 380A9896

The Pro Kit is also available with PATGuard 3 software. Part number: 380A9897

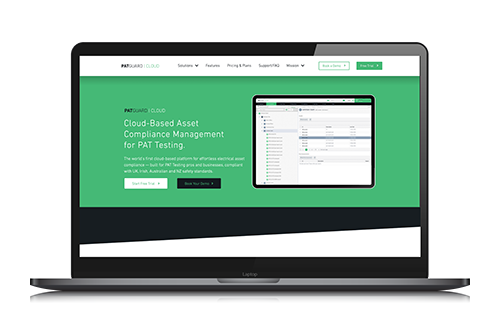

PATGuard 3

PATGuard 3 is the ultimate PAT testing software with health and safety reporting. Not only does it offer fast and comprehensive record management, but it also gives you the ability to record any workplace test or inspection, auto schedule next tests, and create invoices & reports for clients.

Click on the link below to find out more and to Download your 30 day free trial today.

Find out more

Compare the Apollo series

General Features Apollo 400+ Apollo 500+ Apollo 600+
5th Edition and BS EN50699 Compliant bullet bullet bullet
Battery & mains powered bullet bullet bullet
Large internal memory Up to 2,000 records Up to 10,000 records Up to 50,000 records &
2,000 visual inspection images
Bluetooth scanner & printer compatible bullet bullet bullet
Password controlled user accounts   bullet bullet
Set up multiple user accounts with varying levels of privileges   bullet bullet
Clone facility to set up multiple testers   bullet bullet
Checkbox supplied as standard   bullet bullet
Test Inspection Features Apollo 400+ Apollo 500+ Apollo 600+
Auto-increment asset ID   bullet bullet
PAT Setup option to allow for custom menus   bullet bullet
Enter asset description after test using keypad or barcode scanner bullet bullet bullet
Point to point measurement (Earth Continuity & Insulation Resistance) Additional Test Lead required bullet bullet
User configurable electrical test/visual inspection sequences 25 100 100
User set sites & locations 50 100 100
Risk based retest period calculator   bullet bullet
Comment lines against test records 4 4
Configurable checklists for any workplace PPM or PPE inspection   bullet bullet
On-board camera     bullet
Universal risk assessment     bullet
Health & safety certificates     bullet
Data transfer features Apollo 400+ Apollo 500+ Apollo 600+
Upload previous results to tester for faster retesting bullet bullet
1D & QR scanner connectivity Reads 1D data only bullet bullet
Print pass & fail labels with 1D barcode 1D 1D & QR 1D & QR
Add your company logo to labels (large 1D labels only)   bullet bullet
Download to PC  USB Cable USB Cable USB Cable and USB Flash drive
Remote data transfer to mobile device via WiFi hotspot bullet   bullet bullet

Case Studies

PAT lift off for South West electrical contractor with Seaward’s Apollo 600+ PAT lift off for South West electrical contractor with Seaward’s Apollo 600+
PAT lift off for South West electrical contractor with Seaward’s Apollo 600+

Investment in advanced technology is helping an electrical contracting business to complete rapid PAT (portable appliance testing) protocols as part of an intensive professional cu...

Going Underground for Seaward's PAT Going Underground for Seaward's PAT
Going Underground for Seaward's PAT

Investment in advanced Seaward PAT (portable appliance testing) kits is helping London Underground comply with important electrical safety requirements. London Underground, one th...

Seaward’s Apollo Rockets Improved PAT Testing at Local Council Seaward’s Apollo Rockets Improved PAT Testing at Local Council
Seaward’s Apollo Rockets Improved PAT Testing at Local Council

Oxfordshire City Council’s property maintenance and support services company is ensuring it meets its portable appliance testing (PAT) responsibilities with electrical safety tes...

TECC Enjoys Successful Lift-off with Apollo PAT Test Kits TECC Enjoys Successful Lift-off with Apollo PAT Test Kits
TECC Enjoys Successful Lift-off with Apollo PAT Test Kits

Investment in the latest appliance testing technology is helping a specialist electrical contracting business to introduce dedicated company-wide testing protocols and standards as...

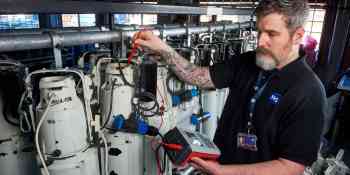

Shining a light on PAT testers Shining a light on PAT testers
Shining a light on PAT testers

When the AV and lighting specialist White Light needed testing equipment for some of its more complex projects, they knew Seaward had the perfect solution.   Starting life as a...

PAT Superhero on a Mission to Test Efficiently PAT Superhero on a Mission to Test Efficiently
PAT Superhero on a Mission to Test Efficiently

The powerful data handling capabilities of modern test technology is helping a local PAT Superhero to deliver effective workplace testing to give employers confidence that their ...

Seaward Helps Gentoo Maintain Safety Standards with Apollo 500 Seaward Helps Gentoo Maintain Safety Standards with Apollo 500
Seaward Helps Gentoo Maintain Safety Standards with Apollo 500

An integrated electrical safety testing package from Seaward is helping social housing organisation Gentoo Group meet its portable appliance testing (PAT) requirements. North Eas...

PAT on the back for Apollo 500 at Royal National College PAT on the back for Apollo 500 at Royal National College
PAT on the back for Apollo 500 at Royal National College

Advanced electrical testing technology is helping the UK’s leading college for those with sight loss maintain the highest standards of safety. The Royal National College for the...

Apollo Testers Have Broad Workplace Inspection Capabilities Apollo Testers Have Broad Workplace Inspection Capabilities
Apollo Testers Have Broad Workplace Inspection Capabilities

Seaward’s latest generation portable appliance testers combine electrical safety testing with a comprehensive data logging capability for all workplace health and safety equipme...


Request a Quote


Optional Accessories

Technical Specifications

Earth Continuity (Rpe)
Test Current +/- 200mA DC
Measurement Range 0.05Ω to 19.99Ω
Pass Value User defined
IEC Lead Test
Test Voltage 5VAC nominal
Test Live / Neutral Checks for o/c, s/c and crossed polarity
Touch Current
Test Voltage Supply voltage, maximum load current 16A
Measurement Range 0.10mA to 5mA
Pass Value User defined
Substitute (Alternative) Leakage Current
Test Voltages >25VAC <50VAC
Measurement Range 0.20mA to 19.99mA
Pass Value User defined
Power Socket Test
Voltage Range 207V – 253VAC
Indicates configuration of voltage potential:- Line potential phase to earth
Line potential phase to neutral Line potential neutral to earth
Insulation Resistance (IR)
Test Voltage 500V / 250VDC @ 1mA nominal
Measurement Range 0.10MΩ to 19.99MΩ
Pass Value User defined
Protective Conductor Current/Load
Test Voltage Supply voltage, maximum load current 16A
Measurement Range 0.25mA to 19.99mA
Pass Value User defined
Load Power/Current
Test Voltage 230V +10%, -15%, maximum load current 16A
Test Duration Programmable up to a maximum of 240s
Measurement Range 0.50A to 16.0A
RCD Test
Test Voltage 230V +10%, -15%
Test Current 30mA / 150mA rms sinusoidal
Display Range 0ms to 2000ms
Test Method Internal isolation to avoid tripping distribution board RCD
General
Memory size up to 10,000 records
Weight 1.5kg
Dimensions 230mm x 150mm x 100mm
Power Source Mains or rechargeable battery pack
Supported Printers Test n Tag Pro (339A980)
Test n Tag Elite 2 (339A989)
