KD1E/KAD
113A915

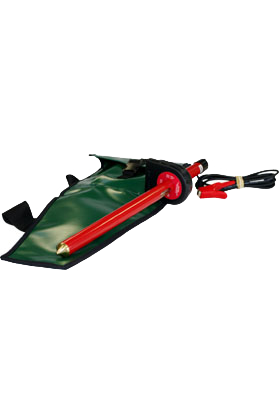

KD1E/KAD

Portable AC/DC neon indicator with audible alarm for use on systems up to 11kV

- AC/DC neon indicators
- Audible alarm


KD1E/KAD

The KD1E/KAD is a neon HV potential indicator with audio alarm, suitable for use on earthed neutral systems up to 11kV. A highly robust, portable AC/DC voltage indicator, this potential indicator provides a means of confirming the presence of voltage on earthed neutral electrical circuits.

Conforming in design lengths to recommended, creepage and safety standards, the KDIE series features high grade PVC tubing and incorporates totally encapsulated resistor chains. For additional safety a proving unit (PH3) is available and should be used before and after the high voltage indicator is employed.

Supplied without Calibration Certificate when purchased online.


Request a Quote


Technical Specifications

Technical Specification
Maximum system voltage11kV
Maximum voltage to earth6.6kV
Threshold voltage300V
Measuring rangeN/A
ResolutionN/A
SensitivityAC/DC
Circuit current (IEC 61234-2)2.3mA nominal @6.6kV
Dielectric leakage current (IEC 61234-2)7uA nominal @ 13.8kV
Length (mm)330
Diameter (mm)25
Handle length (mm)105
Hand guard height (mm)23.5
Contact electrode typeDomed
