KD1E/22
113A912

KD1E/22

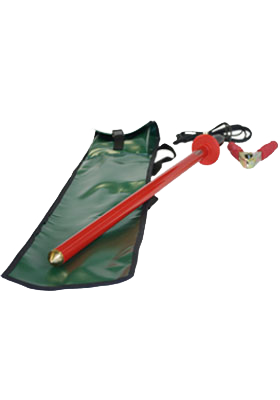

Portable AC/DC neon indicator with domed contact electrode for use on systems up to 22kV

- Covers both AC and DC earthed neutral systems
- UK Electricity Council Approval list G11
- Neon Indication
- Resin filled, robust construction to industry standards
- Direct access to vertical or horizontal metal clad switchgear


KD1E/22

The KD1E/22 is a neon HV potential indicator suitable for use on earthed neutral systems up to 22kV. A highly robust, portable AC/DC voltage indicator, this potential indicator provides a means of confirming the presence of voltage on earthed neutral electrical circuits.

Conforming in design lengths to recommended creepage and safety standards, the KD1E series features high grade PVC tubing and incorporates totally encapsulated resistor chains. For additional safety a PH3 proving unit is available and should be used before and after the high voltage indicator is employed.

Seawards KD1E/22 covers a wide rage of applications and is used in many industry sectors such as Electric Utility Suppliers, Factory maintenance departments, Switchgear manufacturers / suppliers, HV training centres, HV installation contractors and estates / facilities departments.

Other accessories available include 90º and 120º bent end adaptors and 1.5m extension rods for easy access to difficult to reach switchgear.


Request a Quote


Optional Accessories

Technical Specifications

Technical specification
Maximum System voltage 22kV
Maximum Voltage to earth 12.7kV
Threshold voltage 300V
Measuring Range N/A
Resolution N/A
Sensitivity AC/DC
Circuit current (IEC 61234-2) 3.5mA nominal @12.7kV
Dielectric leakage current (IEC 61234-2) 12uA nominal @ 26.4kV
Length (mm) 665
Diameter (mm) 25
Handle length (mm) 90
Hand guard height (mm) 23.5
Contact Electrode Type Domed
