KD1E/15D
109A910

KD1E/15D

Portable AC/DC indicator with digital display for use on systems up to 15kV

- AC/DC digital indicators
- Digital display
- Integral rechargeable battery


KD1E/15D

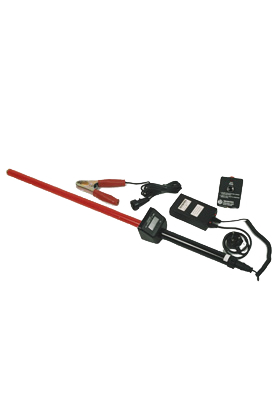

The KD1E/15D is a digital HV potential indicator which can be used to indicate the presence of voltage or make voltage measurements on earthed neutral systems up to 15kV. The potential indicator display is powered by an integral rechargeable battery and is supplied complete with battery charger and PH3 proving unit in a bespoke carrying case.

This robust, highly portable digital potential indicator is supplied with a carrying case for the indicator and accessories. These instruments provide a means of measuring voltage on earthed neutral electrical circuits.

Conforming in design lengths to recommended, creepage and safety standards, the KDIE series features high grade PVC tubing and incorporates totally encapsulated resistor chains.


Request a Quote


Technical Specifications

Technical specification
System voltage 15kV maximum
Maximum voltage to earth 8.6kV
Measurement range 0.00kV to 8.6kV
Resolution 10V
