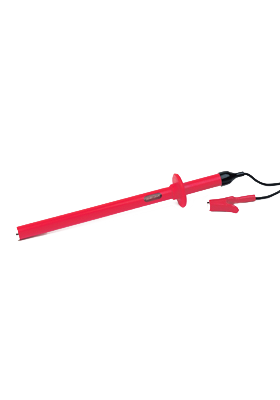

KD1E/19S
Portable AC only neon indicator for use on systems up to 19kV
- AC only neon indicators
- UK Electricity Council Approval list G13
- Neon Indication
- Resin filled, robust construction to industry standards
- Direct access to vertical or horizontal metal clad switchgear
KD1E/19S
The KD1E/19S is a neon AC only HV potential indicator suitable for use on earthed neutral systems up to 19kV. A highly robust, portable AC only voltage indicator, this potential indicator provides a means of confirming the presence of voltage on earthed neutral electrical circuits.
Conforming in design lengths to recommended, creepage and safety standards, the KDIE series features high grade PVC tubing and incorporates totally encapsulated resistor chains.
Note: The KD1E/19S is an AC Only indicator and must be used with the AC only proving unit. The KD1E/19S is not compatible with the PH3 proving unit which has a DC output. Please contact us for details on the AC proving unit.
Request a Quote
Technical Specifications
| Technical specification | |
|---|---|
| Maximum system voltage | 19kV |
| Maximum voltage to earth | 11kV |
| Threshold voltage | 300V |
| Measuring range | N/A |
| Resolution | N/A |
| Sensitivity | AC only |
| Circuit current (IEC 61234-2) | 0.9mA nominal @11kV |
| Dielectric leakage current (IEC 61234-2) | 12uA nominal @ 22.8kV |
| Length (mm) | 330 |
| Diameter (mm) | 25 |
| Handle length (mm) | 105 |
| Hand guard height (mm) | 23.5 |
| Contact electrode type | Flat |
