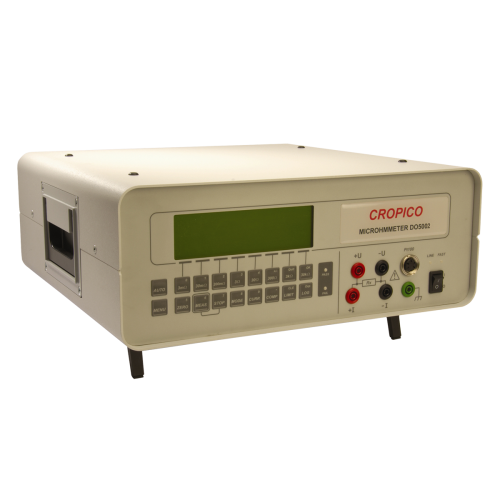

Cropico DO5002
930078

Cropico DO5002

Digital microhmmeter with temperature compensation

- High accuracy 0.03%, 6 ranges, 200milliohms to 30kilohms
- Adjustable current ranges,10uA-100mA
- Fast sampling (0.02Hz) at 10u ohm resolution


Cropico DO5000 Series Comparison

Features DO5000 DO5001 DO5002
True 4 terminal measurement eliminates lead resistance errors
Measuring range from 3 milli ohm to 30 kilo ohm
Measuring range from 200 milli ohm to 30 kilo ohm
10 micro ohm resolution
100 nano ohm resolution
True zero capabilities
Digital Calibration
Automatic temperature compensation with programmable coefficients
Open circuit lead warning LED
Current range from 10mA to 10A
Current range from 10 micro Amp to 10mA
Programmable measuring current 10% to 100% in 1% steps
High Accuracy 0.03%
Fast measuring capability of 50 measurements per second
Programmable High Low Limits with red / green lamps on front panel
Open Circuit voltage limit mode 20mV / 50mV maximum
Measuring current selection +I / -I and Auto average
Data logging with statistical analysis
Cable length calculations
Rechargeable batteries built in

Cropico DO5002

The DO5002 micro ohmmeter is a truly remarkable instrument and ideally suited for laboratory testing of samples, for production line testing, and with the addition of the interfaces RS232 / IEEE-488 or PLC, the DO5002 micro ohmmeter may be remotely controlled and integrated into an automated testing system.

The DO5002 micro ohmmeter encompasses all the features required of an ohmmeter in one instrument. Programmable measuring current in 100 steps ensures that the DO5002 is suitable for all your applications. Automatic temperature compensation and Hi / Lo limits permits sorting of components with the minimum of fuss. Statistical analysis of these values allows you to display the max/min /average values as well as peak to peak and standard deviation. The DO5002 will even calculate cable lengths in ohms/metre.

Case Studies

Seaward has the measure of testing at fuse manufacturer Seaward has the measure of testing at fuse manufacturer
Seaward has the measure of testing at fuse manufacturer

One of the UK’s leading manufacturers of industrial and domestic fuse-links has specified advanced microhmmeters to improve resistance testing at its factory. Lawson Fuses Limi...

World's largest fuse manufacturer specifies Cropico World's largest fuse manufacturer specifies Cropico
World's largest fuse manufacturer specifies Cropico

The world's largest manufacturer of North American and European-style fuses is using the Cropico DO5000 microhmmeter to test the functionality of its products during the manufactu...


Request a Quote


Technical Specifications

Technical specification
Measurement 4 wire eliminates lead resistance
Display LCD Graphics panel with backlight 30,000 count
Ranges Manual / Automatic
Auto Zero Value Average Hold
Systems Interface RS232 fitted as standard, PLC option
Terminals 4mm safety sockets
Working Temperature 0°C ... 45 °C
Storage Temperature -10°C...+60°C
Mains Supply 230 V ±10%, 115 V ±10% 47...63Hz
Safety IEC 1010 Class 1
Dimensions 339 x 324 x 131mm (W D H)
Weight 8.5kg
Accessories Supplied with RS232 interface, mains cord, handbook and certificate of conformity
