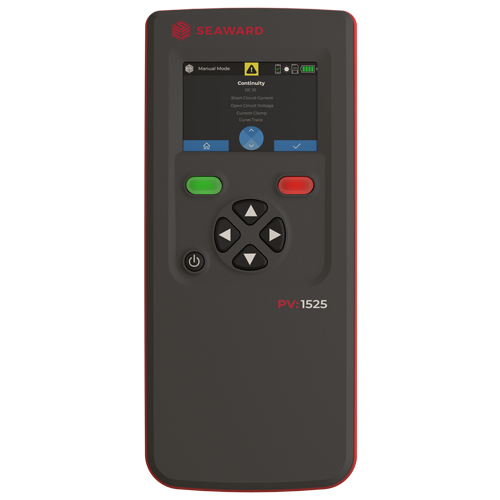

PV:1525
A new dawn of optimal PV testing

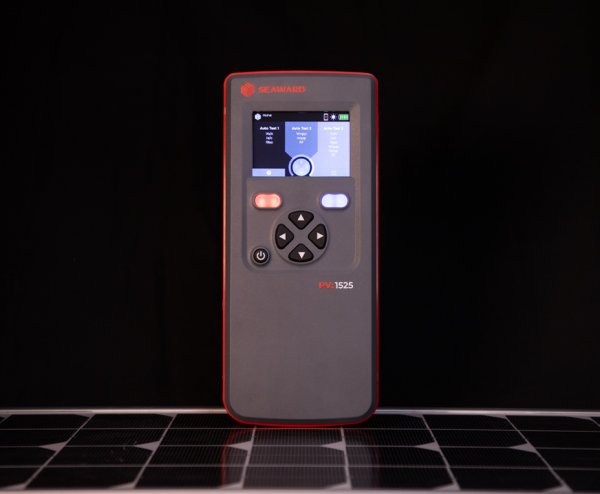

The PV:1525 redefines photovoltaic (PV) system testing, combining advanced functionality with a compact, handheld design.
Designed specifically for PV installers and O&M engineers, this cutting-edge tester delivers essential safety tests for PV systems up to 1500V DC and 25A, offering exceptional portability, ease of use, and seamless data management in the field.
Designed for Precision, Built for Efficiency
In the evolving solar industry, accurate testing and streamlined workflows are essential. The PV:1525 meets these demands with cutting-edge technology that simplifies field testing while delivering comprehensive performance insights. With a focus on efficiency, portability, and seamless data management, it ensures that solar professionals have the right tools to work smarter, not harder.
As the latest addition to our PV testing range, the PV:1525 builds on the success of our existing solutions, offering a brand-new handheld tester that combines enhanced functionality with familiar ease of use.
Designed to support engineers in commissioning, troubleshooting, and maintaining PV systems, the PV:1525 delivers a full suite of electrical safety tests, including insulation resistance, ground continuity, open circuit voltage, and short circuit current – all for systems up to 1500V DC and 25A.
With its intuitive interface and Bluetooth connectivity to the PV:Mobile App, the PV:1525 represents the next step in reliable, high-performance solar PV testing.
Smarter Solar Testing Starts Here
PV:1525 - Comprehensive Testing with Seamless Connectivity
The PV:1525 delivers comprehensive PV system testing, including Ground Continuity, Insulation Resistance, Open Circuit Voltage, and Short Circuit Current measurements.
Featuring an innovative new user interface, it maintains the ease of use from previous models while introducing enhanced features designed for modern test applications. Users can tag test results with installation-specific details, simplifying data management and traceability.

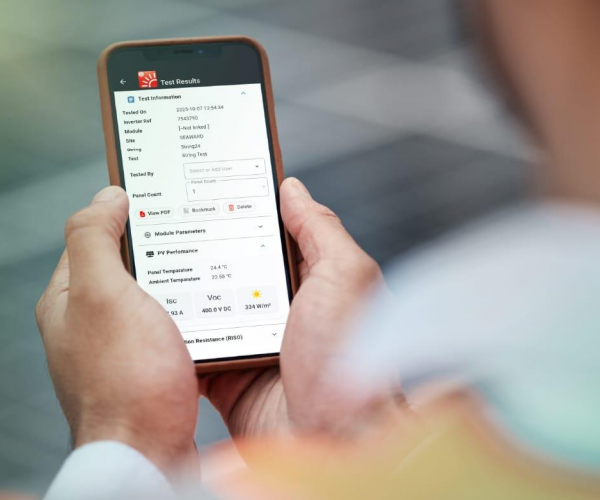

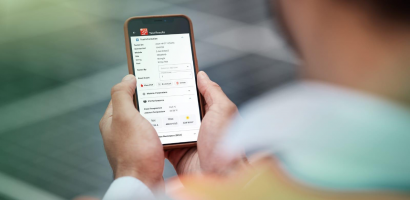

With built-in Bluetooth connectivity, results can be seamlessly transferred to a mobile app for review and synchronisation with software, ensuring your device stays updated with the latest features.

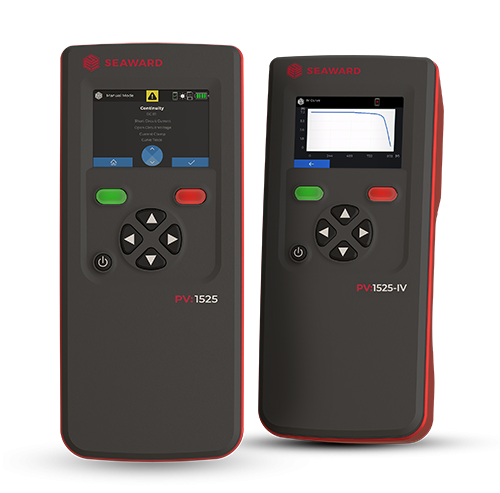

Compare the Seaward Solar Testing Range
| General Features | PV:1525 | PV200/150+ |
| Short Circuit Current Measurement (Max) | 1500V | 1000V |
| Open Circuit Voltage Measurement (Max) | 25A | 15A |
| Maximum Power Rating | 37.5kW | 10kW |
| Maximum Insulation Resistance Voltage | 1500V | 1000V |
| Continuity Measurement | 200mA | 200mA |
| Display | Colour Screen | Backlit LCD |
| Memory | 999 | 999 |
| Test Asset Identification Input | Yes | No |
| Intelligent In Rush Current Protection | Yes | No |
| Irradiance Measurment Range | 1500W/m² | 1250W/m² |
| Current Clamp Connectivity | Wireless and Standalone | Wired Only |
| Download Method | Bluetooth | Wired / NFC |
| Request a Quote | Request a Quote |
Request a Quote
Technical Specifications
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0VDC - 1500VDC |
| Measuring Range | 5.0VDC - 1500VDC |
| Resolution | 0.1VDC maximum |
| Earth Continuity / Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | >4VDC, nominal |
| Test Current into 2Ω | >200mA |
| Display Range | 0.00Ω - 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω - 199Ω |
| Resolution | 0.01Ω maximum |
| Test Leads Zero | Zero up to 10Ω |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx 4000 1 second tests |
| Rpe Voltage Measurement (4mm Terminals) | |
|---|---|
| Display Range | 30V - 440VAC/DC |
| Voltage Measuring Range | 30V - 440VDC 30V - 440VAC 50-60Hz |
| Resolution | 1V |
| Operating Power (PV Terminals & wireless using PV:1500 Clamp) | |
|---|---|
| Display Range | 0.00kW - 40kW |
| Measuring Range | 0.50kW - 40kW |
| Resolution | 0.01kW |
| Short Circuit Current Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.00ADC - 25.00ADC |
| Measuring Range | 0.50ADC - 25.00ADC |
| Maximum Power | 37.5kW |
| Resolution | 0.01 ADC maximum |
| Insulation Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | 250, 500, 1000, 1500V (as per IEC61557-2) |
| Test Current Short Circuit | 2mA |
| Display Range | 0.05MΩ - 300MΩ |
| Measuring Range (EN61557-2) | 0.05MΩ - 300MΩ |
| Resolution | 0.01MΩ Maximum |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx 4000 1 second tests |
| Operating Current (Wireless via PV:1500 Clamp) | |
|---|---|
| Display Range | 0.1A - 40.0A |
| Current Measuring Range | 0.1A - 40.0A DC 0.1A - 40.0A AC 50-60Hz |
| General Specification | |
|---|---|
| Weight | 1kg / 2.2lb |
| Dimensions | 265 x 115 x 78 mm 10.4 x 4.6 x 3.1 in |
| Display | 3.5in Colour display with Backlight |
| Power Source | 11.55V 2930mAH LiPo Battery |
| Auto Power Down | User Configurable |
| Onboard Memory | 1000 Slots |
