PV150+ Complete Test Kit
Solar
PV150+ Complete Kit

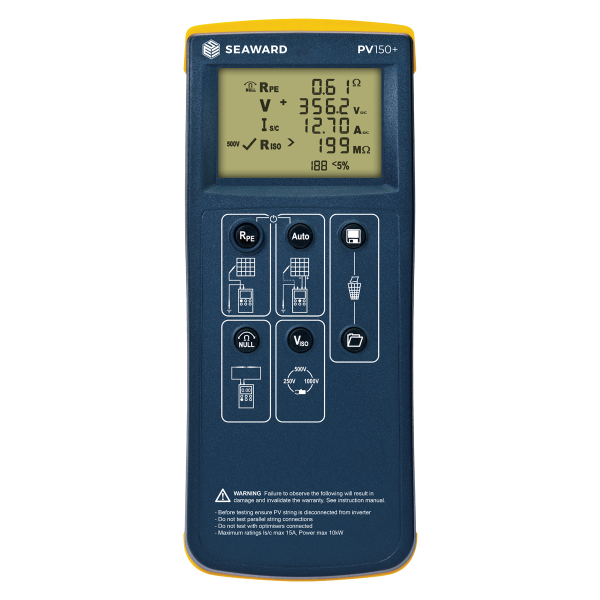

The NEW PV150+ allows electrical safety and performance verification of modern photovoltaic installations.
This upgraded version of the popular PV150 has been designed to better support the testing of PV modules
with recent technology advances
Earth Continuity Testing
Earth continuity measurements with test lead null
Results Storage
Store up to 200 test records on the PV150+
Easy PV Testing
Comprehensive PV testing at the push of a button
Complete Test Kit
Everything you need to effectively test 1000V systems

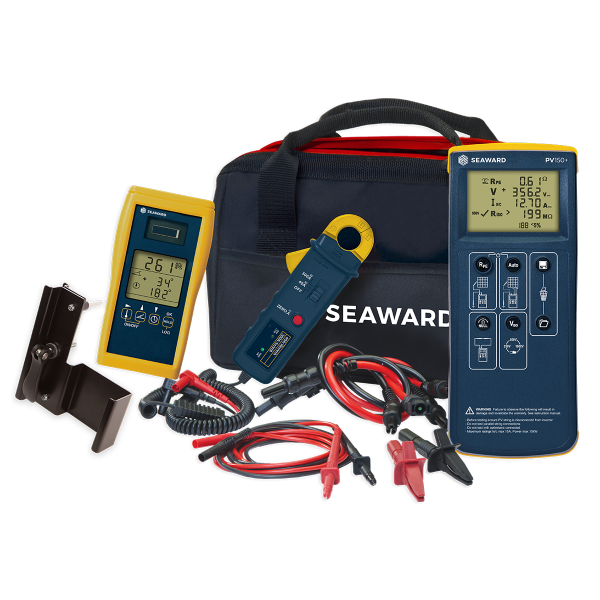

What's included in the Kit?
- Seaward Solar Installation PV150+ instrument.
- SolarCert PC Software.
- 2 x MC4 test lead adaptors.
- 2 x Combiner box test probes and detachable alligator clips (MC4).
- 2 x Test leads, with test probes and detachable alligator clips (4mm).
- AC/DC current clamp.
- Solar Survey 200R irradiance meter and temperature probe.
- Solar Survey 200R mounting bracket.
- Rugged carry bag.
- Quick Start Guide.
- UKAS Calibration Certificate (PV150+).
Part Number: 388A931
Why buy the PV150+ multifunction solar PV test kit?
- Improved capacitive induced in-rush protection by a factor of 300%
- Save time using a number of different measuring tools in the field with this fast and comprehensive solar PV tester.
- The PV150+ features a safe test connection meaning you can safely test energised arrays.
- The unit can also wirelessly capture and record real time irradiance, ambient temperature and PV module temperature measurements from the Solar Survey 200R.
- 200 datasets can be stored on the PV150+ and downloaded to the SolarCert software so you can create professional reports for your customers.
When you choose a Seaward tester you don't just get our tester; you also get access to our range of support materials to help you get the most from your new instrument.
We have created a number of support FAQs for you should you need any guidance when carrying out a particular test with your PV150+ tester.
Click here to view the PV150+ support section
From time to time, we also host educational webinars hosted by our solar specialist to help keep you up to date with the latest testing techniques and legislation and PV test tools.
We've recorded a number of our webinars for you to view in your own time.
Request a Quote
Optional Accessories
Technical Specifications
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0V DC – 1000V DC |
| Measuring Range | 5.0V DC- 1000V DC |
| Resolution | 0.1V DC maximum |
| Accuracy | ± (0.5 % + 2 digits) |
| Enunciators | DC voltage polarity correct or reversed |
| Earth Continuity Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | >4V DC, nominal |
| Test Current into | 2 Ω >200mA |
| Display Range | 0.00Ω - 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω - 199Ω |
| Resolution | 0.01Ω maximum |
| Accuracy | ± (2% + 5 digits) |
| Test Leads Zero | Zero up to 10Ω, by zero button |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx. 4000 1 second test |
| Rpe Voltage Measurement (4mm Terminals) | |
|---|---|
| Display Range | 30V - 440V AC/DC |
| Voltage Measuring Range | 30V - 440V DC |
| 30V - 440V AC 50-60Hz | |
| Resolution | 1V |
| Accuracy | ± (5% + 2 digits) |
| DC Operating Power (via AC/DC Current Clamp and PV Terminals) | |
|---|---|
| Display Range | 0.00kW - 40kW |
| Measuring Range | 0.50kW - 40kW |
| Resolution | 0.01kW |
| Accuracy | ± (5% + 5 digits) |
| Connectivity | |
|---|---|
| USB download to PC (CSV format) | |
| Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft) | |
| Service | |
|---|---|
| 2 year warranty (subject to terms and conditions, available at /warranty) | |
| Short Circuit Current Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.00A DC - 15.00A DC |
| Measuring Range | 0.50A DC - 15.00A DC |
| Maximum Power | 10kW |
| Resolution | 0.01A DC maximum |
| Accuracy | ± (1% + 2 digits) |
| Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal) | |
|---|---|
| Test Voltage Open Circuit | 250V, 500V, 1000V (as per IEC61557-2) |
| Test Voltage Specification | -0% +20% (open circuit) |
| Test Voltage @ 1mA | >1mA into UN x (1000Ω/V) |
| Test Current Short Circuit | <2mA |
| Display Range | 0.05MΩ - 199MΩ |
| Measuring Range (EN 61557-2) | 0.05MΩ - 199MΩ |
| Resolution | 0.01MΩ maximum |
| Accuracy | 0.05MΩ - 100MΩ ± (5% + 5 digits) |
| 101MΩ - 199MΩ ± (10% + 5 digits) | |
| Visible Warning | ≥ 30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥ 30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx. 3000 1 second tests |
| Operating Current (via AC/DC Current Clamp) | |
|---|---|
| Display Range | 0.1A - 40.0A |
| Current Measuring Range | 0.1A - 40.0A DC |
| 0.1A - 40.0A AC 50-60Hz | |
| Resolution | 0.1A |
| Accuracy | ± (5% + 2 digits) |
| Instrument Dimensions and Weight | |
|---|---|
| Weight | 1.1kg without batteries |
| Dimensions | 26.4x10.7x8cm |
| Display | Custom LCD with backlight |
| Power Source | 6 x 1.5V AA cells |
| Battery life | >1000 test sequences |
| Auto power down | User programmable |
| Onboard memory | Up to 200 complete test datasets |
| Software compatibility | |
|---|---|
| Compatible with SolarCert software (English language only) (Windows) | |
