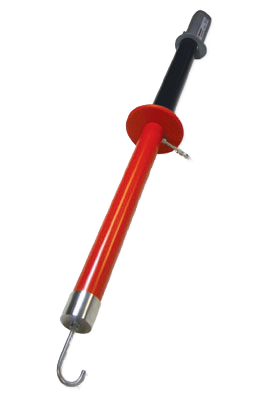

SDR35
SPECIFICATIONS & MANUALS
If you're looking for the SDR35 datasheet featuring full
technical specifications or the instruction manual, you can find them here.
Manuals
Datasheets
Specifications
| Technical specification | |
|---|---|
| Discharge Voltage | 35kV AC/DC max |
| Peak Discharge Current | 13.5A for 100ms |
| Bleeder Resistance | 10k ohm |
| Discharge Capacitance | 6 μF |
| Leakage Current at 35KV AC | <50 μA |
| Discharge Energy | 3675J |
| Cooling | Neutral |
| Total Size | 32mm x 950mm |
| Weight | 2.2 kg (Net) |
| Safety | IEC 61230,[br]EMC Not Applicable |
| Temperature | -5°C to 70°C |
