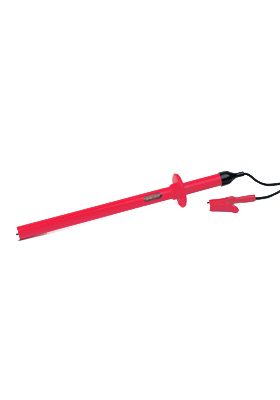

KD1E/19S

SPECIFICATIONS & MANUALS

If you're looking for the KD1E/19S datasheet featuring full technical specifications or the instruction manual, you can find them here.

Specifications

Technical specification
Maximum system voltage19kV
Maximum voltage to earth11kV
Threshold voltage300V
Measuring rangeN/A
ResolutionN/A
SensitivityAC only
Circuit current (IEC 61234-2)0.9mA nominal @11kV
Dielectric leakage current (IEC 61234-2)12uA nominal @ 22.8kV
Length (mm)330
Diameter (mm)25
Handle length (mm)105
Hand guard height (mm)23.5
Contact electrode typeFlat
