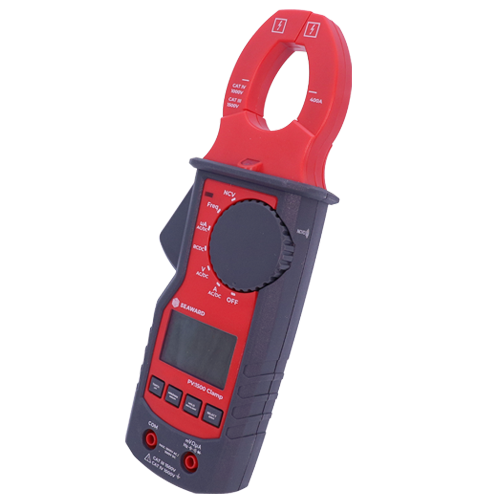

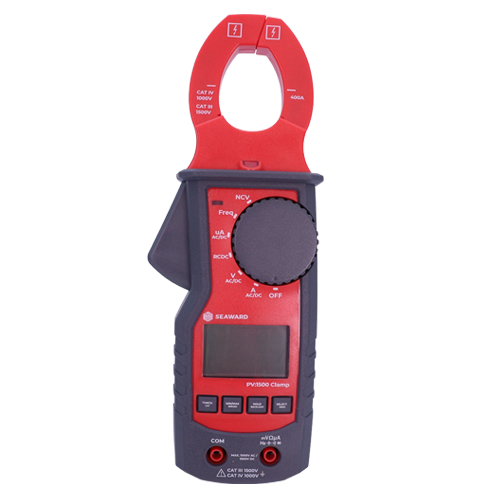

PV:1500 Clamp
Wireless Clamp Meter for Solar Professionals
The PV:1500 Clamp is a versatile, high-safety clamp meter designed to work seamlessly with the PV:1525. With Bluetooth connectivity, standalone operation, and CAT III 1500V safety, it’s the perfect tool for fast, accurate solar testing in the field.
PV:1500 Clamp – Wireless PV Measurement Accessory
The PV:1500 Clamp is the ideal companion to the PV:1525 handheld solar tester, giving installers and O&M technicians added flexibility and safety when working on high-voltage PV systems.
With Bluetooth connectivity, the PV:1500 Clamp wirelessly transfers AC/DC current and voltage readings directly into the PV:1525 memory, enabling accurate power measurement without manual input. It can also operate as a standalone clamp meter, with its own integrated LCD display, making it a versatile tool for any solar professional’s kit.
Rated to CAT III 1500V and CAT IV 1000V, the PV:1500 Clamp allows technicians to verify current flow and system isolation without opening the circuit or breaking strings, helping reduce risk and downtime during testing.
Request a Quote
Technical Specifications
| Voltage Measurement | |
|---|---|
| AC TRMS *b,c,e | 1mV ... 1000V |
| DC | 1mV ... 1500V ±(1.5% meas value. +5 Digits) to 4V ±(1% meas value. +3 Digits) >4V |
| Resistance, Continuity & Diode | |
|---|---|
| Resistance | 0…40MOhm ±(1.5% meas value. +3 Digits) |
| Continuity | < 30R buzzer sound |
| Diode | 0 ... 1.5V |
| Frequency | |
|---|---|
| Frequency | Up to 10MHz ±(1% + 1 digits |
| Non Contact Voltage (NCV) | |
|---|---|
| Non Contact Voltage (NCV) | Yes |
| Current Measurement | |
|---|---|
| Clamp: AC TRMS *c,d | 0.1 ... 400A |
| DC | 0.1 μA ... 400 μA ±(1.5% meas value. +5 Digits) |
| Jack: AC TRMS *b,e | 0.1 μA ... 400 μA ±(1.8% meas value. +5 Digits) |
| Capacitance | |
|---|---|
| Capacitance | 10 nF ... 100 μF |
| 51,2nF *f | ±10 % typically |
| 512,0nF | ±(1,5 % of meas val + 5 digits) ±10 % typical |
| 5.120uF | ±10 % typical |
| 51,2uF | ±10 % typical |
| Low Pass Filter (LPF) | |
|---|---|
| Low Pass Filter (LPF) | 1KHz/-3 dB |
| General Specifications | |
|---|---|
| Torch Light | Yes |
| Auto-Power-Off | Yes |
| Self-Test | Yes |
| Bluetooth | Yes, 5.0 |
| In Compliance with | IEC 61010-1 IEC 61010-2-032 |
| Overvoltage Category | CAT IV / 1000V CAT III / 1500V |
| Dimension approx. | 220 x 81 x 43mm |
| Weight approx. | 260g (without batteries) |
| Jaw opening | 35mm |
| Leads Connectors | 25mm |
| Distance | Yes |
| Backlight | NCV Indication |
| LED | Torch light |
| Power Supply | 2 x 1.5V AAA |
