Cropico RM6–N Series

Compact 6 decade resistance box with wide range

- 6 Decades
- Range 1Ω to 100MΩ
- Accuracy 1%

Share with...

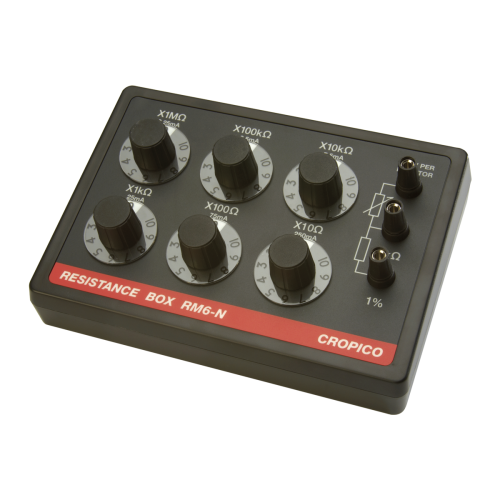

Cropico RM6N

RM6N, RM6 N2, RM6 N3 Resistance Decade Total Resistance 11.1111Megohm, Resolution 10Ohms

The RM6-N is a space and cost-saving 6 decade resistance box . 3 models are available covering the range 1ohm to 111.111 Megohm. An additional 1kohm resistor is available at the terminals enabling the user to make a simple divider. The RM6-N incorporates 0.6 watt thick film resistors with a specified accuracy of ±1%.

The RM6-Ns constitute an ideal tool for use in all electrical and electronic laboratories or workshop environment offering a wide range of values with minimum cost

Request a Quote

Make an enquiry

Technical Specifications

RM6N - Decade
10 x 1ohm	No
10 x 10ohm	Yes
10 x 100ohm	Yes
10 x 1kohm	Yes
10 x 10kohm	Yes
10 x 100kohm	Yes
10 x 1Mohm	Yes
10 x 10Mohm	No

RM6 N2 - Decade
10 x 1ohm	Yes
10 x 10ohm	Yes
10 x 100ohm	Yes
10 x 1kohm	Yes
10 x 10kohm	Yes
10 x 100kohm	Yes
10 x 1Mohm	No
10 x 10Mohm	No

RM6 N3 - Decade
10 x 1ohm	No
10 x 10ohm	No
10 x 100ohm	Yes
10 x 1kohm	Yes
10 x 10kohm	Yes
10 x 100kohm	Yes
10 x 1Mohm	Yes
10 x 10Mohm	Yes

Technical specification
Technical specification	11.1111Megohm in steps of 10ohm
Maximum Continuous Working Voltage	60Vdc / 30Vrms
Resistors	Thick film 0.4W at 70°C. Temperature Co-efficient: ±100 ppm / °C
Terminals	Insulated will accept 4mm banana plugs and spade tags
Switches	Contacts silver plated brass. Contact resistance 10milliohm. Positive click mechanism. Insulation 50,000Mohm
Residual Resistance	<0.1ohm
Case	Polished hardwood with aluminium top panel

RM6N - Decade
10 x 1ohm	No
10 x 10ohm	Yes
10 x 100ohm	Yes
10 x 1kohm	Yes
10 x 10kohm	Yes
10 x 100kohm	Yes
10 x 1Mohm	Yes
10 x 10Mohm	No

RM6 N2 - Decade
10 x 1ohm	Yes
10 x 10ohm	Yes
10 x 100ohm	Yes
10 x 1kohm	Yes
10 x 10kohm	Yes
10 x 100kohm	Yes
10 x 1Mohm	No
10 x 10Mohm	No

RM6 N3 - Decade
10 x 1ohm	No
10 x 10ohm	No
10 x 100ohm	Yes
10 x 1kohm	Yes
10 x 10kohm	Yes
10 x 100kohm	Yes
10 x 1Mohm	Yes
10 x 10Mohm	Yes

Technical specification
Technical specification	11.1111Megohm in steps of 10ohm
Maximum Continuous Working Voltage	60Vdc / 30Vrms
Resistors	Thick film 0.4W at 70°C. Temperature Co-efficient: ±100 ppm / °C
Terminals	Insulated will accept 4mm banana plugs and spade tags
Switches	Contacts silver plated brass. Contact resistance 10milliohm. Positive click mechanism. Insulation 50,000Mohm
Residual Resistance	<0.1ohm
Case	Polished hardwood with aluminium top panel
