AGL-5
374A910

AGL-5

Voltage Detector

Voltage detector designed for use on offshore, remotely operated vehicles and airfield ground lighting systems

- Compatible for use on any system up to 5kV
- Complete with proving unit and carry case
- High visibility indicators


AGL-5

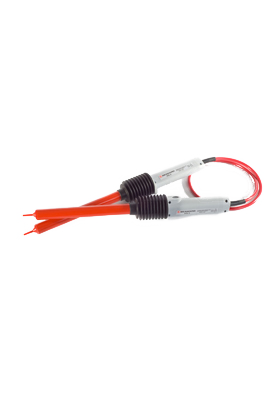

The Seaward AGL-5 is a two pole voltage detector designed specifically for use on Offshore systems or Airfield Ground Lighting systems up to 5kV. The instrument indicates the presence of voltages greater than 50V AC/ 70V DC and is ideal for proving dead on Remotely Operated Vehicles or AGL systems up to 5000V AC or DC.

The unit is totally encapsulated in a high impact rugged enclosure and is IP64 rated. The ultra-bright high intensity red LED indicators and a polarizing filter making it clearly visible in all working environments. The AGL-5 is supplied complete with a proving unit for proof testing before and after use and a protective carry case.

  • Compatible with all AGL systems up to 5kV
  • High visibility indicators
  • Compact and highly portable
  • Fully compliant with all relevant international standards
  • Complete with proving unit and carry case

Case Studies

AGL-5 enhances safety for airfield ground-lighting AGL-5 enhances safety for airfield ground-lighting
AGL-5 enhances safety for airfield ground-lighting

The new AGL-5 two-pole voltage detector is specially designed for use on Airfield Ground Lighting (AGL) systems. It enables service engineers, maintenance personnel and airport tec...


Request a Quote


Technical Specifications

AGL-5 Two Pole Voltage Detector
Working Voltage 5000V ac/dc max
Threshold Voltage 50Vac/70Vdc
Circuit Current <3.5mA
Indicator 2 ultra-bright red LED
Compliance IEC 61243-2 and IEC 61243-3
PH3-LLT Proving Unit
Output Voltage 500V dc nominal
Output current 0.45mA into 2kohm
Two non-touchable terminals
Neon ‘active' indicator
Compliance BS EN 61010-1
