112A925
PH3-LLT MK1 Proving Unit
Proving Unit - 500V DC output
- For use with LLT Live Line Tester MK1
- For use with AGL-5 Air Ground Lighting Tester
- Nominal 500V DC output
- Network Rail Certificate of Acceptance No. PA05/03345
PH3-LLT

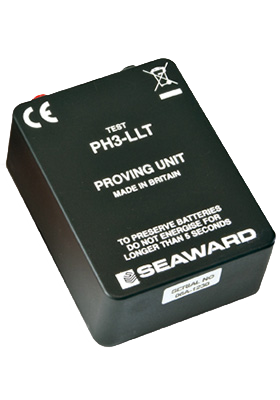

PH3-LLT is a lightweight compact proving unit providing a nominal output voltage of 500V DC.
- Output Voltage - 500V DC nominal
- Output current - 0.45mA into 2kohm
- Two non-touchable terminals
- Neon ‘active’ indicator
- Compliance BS EN61010
Request a Quote
Technical Specifications
| Technical Specifications | |
|---|---|
| Output Voltage | 500V dc nominal |
| Output current | 0.45mA into 2kohm |
| Two non-touchable terminals | |
| Neon ‘active' indicator | |
| Compliance | BS EN61010-1 |
| Part Numbers | |
|---|---|
| PH3-LLT Proving unit | 112A925 |
| Carry case | 308A955 |
