Cropico RM6-N Series
Space saving, compact and versatile 6 decade reistance box with wide range

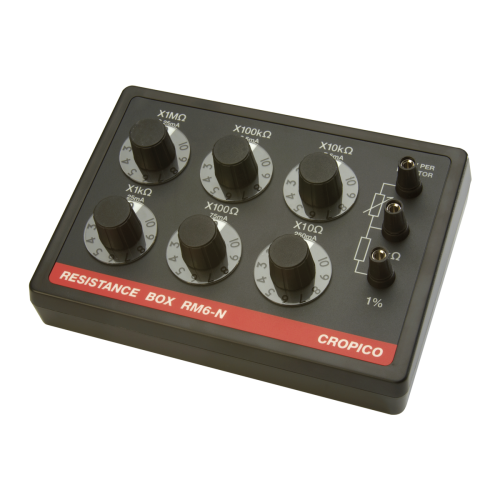

Cropico RM6-N Series Decade Resistance Box
The RM6-N is a space saving 6 decade resistance box, 3 models are available covering the range 1 ohm to 111,111 Mega ohm. An additional 1 kilo ohm resistor is available at the terminals enabling the user to make a simple divider.
The RM6-N decade resistance box incorporates 0.6 watt resistors with a specified accuracy of ±1%.
Designed for durability and ease of maintenance, the case is high impact polystyrene and the size is only 190 x 140 x 70 mm.
The RM6- N’s constitute an ideal tool for use in all electrical and electronic laboratories or workshop environments offering a wide range of values with minimum cost.
Technical specification
| Decade | RM6N | RM6 N2 | RM6 N3 |
| 10 x 1ohm | ✓ | ||
| 10 x 10ohm | ✓ | ✓ | |
| 10 x 100ohm | ✓ | ✓ | ✓ |
| 10 x 1kohm | ✓ | ✓ | ✓ |
| 10 x 10kohm | ✓ | ✓ | ✓ |
| 10 x 100kohm | ✓ | ✓ | ✓ |
| 10 x 1Mohm | ✓ | ✓ | |
| 10 x 10Mohm | ✓ |
| Range | 11.1111Megohm in steps of 10ohm |
| Maximum continuous working voltage | 70Vdc / 33vrms |
| Resistors | Metal film 0.4W at 70°C. Temperature Co-efficient: ±100 ppm / °C |
| Terminals | Insulated will accept 4mm banana plugs and spade tags |
| Switches | Contacts silver plated brass. Contact resistance 10milliohm. Positive click mechanism. Insulation 50,000Mohm |
| Residual Resistance | <0.1ohm |
| Case | Polished hardwood with aluminium top panel |
