Solar Utility Pro 1500V 40A Solar PV Tester
416A910

Solar Utility Pro Complete Kit

Solar PV Testers

- Test multiple strings in parallel up to 1500V 40A.
- Test at a string level or in the combiner box.
- Record up to 999 full sets of string data.
- Test open circuit voltage (Voc), short circuit current (Isc), irradiance (W/m2), ambient temperature & more.
- Free product and O&M training with every purchase.


Parallel
Test parallel wired strings up to 1500V / 40A - so no more separating strings to keep within the limits of other instruments – ideal for today’s powerful PV installations.
Maximise
Maximise the time you spend in the field by recording up to 999 full sets of string data – to complete testing without downloading and clearing the memory.
Highest Rated Tester
The highest rated PV tester on the market, the ability to test across multiple strings reduces the risk of accidental damage to the instrument and the user.
Rugged

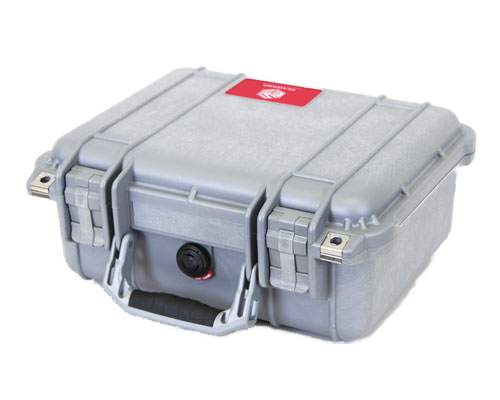

The rugged case design provides more protection against damage while being transported around large utility scale sites, wherever they are.

More about the Solar Utility Pro

The new Solar Utility Pro from Seaward takes PV testing to the next level. With the introduction of more efficient 1500V modules and inverters, Seaward have answered the industry call for an easy to use and robust tester with 1500V capabilities.

Its market leading 40A current capability enables the Solar Utility Pro to test parallel wired strings up to a maximum of 1500V / 40A, eliminating the time consuming task of separating strings to keep within lower limits of other instruments.

A single press of the Test button will give values for Open Circuit Voltage and Short Circuit Current, and when paired with the Seaward Solar Survey 200R irradiance meter, will also record irradiance, module and ambient temperature measurements. The large internal storage memory can record up to 999 complete record sets, which can be downloaded as a CSV file to a PC for review.

To make on site testing easier, the Solar Utility Pro is supplied with 1.5M long conversion leads that convert the standard MC4 leads to alligator clips – particularly useful in combiner boxes and junction boxes.

These features, in a rugged enclosure, give the larger scale PV engineer the most efficient, portable and highest rated tester available.

Case Studies

Solar PV Testers Never Tyre at Malaysia’s Goodyear Factory Solar PV Testers Never Tyre at Malaysia’s Goodyear Factory
Solar PV Testers Never Tyre at Malaysia’s Goodyear Factory

Advanced photo voltaic (PV) test equipment ensures thousands of rooftop solar power panels installed at one of Asia’s largest factories operate safely and at peak performance lev...

Seaward Testers Power Ahead at Malaysia PV Specialists Seaward Testers Power Ahead at Malaysia PV Specialists
Seaward Testers Power Ahead at Malaysia PV Specialists

One of Asia's leading clean energy specialists, Solarvest Holdings Berhad, uses the latest electrical safety test equipment to ensure the solar photovoltaic (PV) installations it s...
