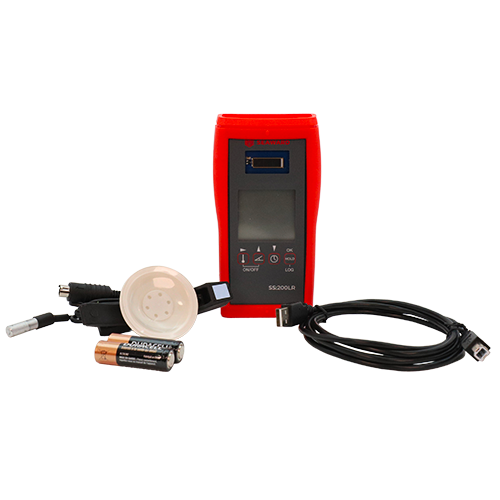

SS:200LR

SPECIFICATIONS & MANUALS

If you're looking for the SS:200LR datasheet featuring full technical specifications or the instruction manual, you can find them here.

Manuals

Datasheets

Specifications

Irradiance Measurement
Display range	100 ... 1999 W/m2 / 30 ... 633 BTU/hr-ft2
Measurement range	100 ... 1500W/m2 / 30 ... 475 BTU/hr-ft2
Resolution	1 W/m2 / 1 BTU/hr-ft2

Temperature Measurement
Display range	–30 °C ... +125 °C
Measuring range	–30 °C ... +125 °C
Resolution	1°

Compass Bearing
Display range	0° ... 360°
Measuring range	0° ... 360°
Resolution	1°

Inclinometer
Display range	0° ... 90°
Measurement range	0° ... 90°
Resolution	1°

Mechanical Design
Weight	Approx. 0.25 kg / 0.6 lb (without batteries)
Dimensions	Approx. 14.8 cm × 8.0 cm × 3.3 cm / 5.8“ × 3.2“ × 1.3“
Protective system	Housing: IP40 as per IEC 60529 (Protection against ingress of solid foreign objects: ≥ 1.0 mm / 0.039” Ø; protection against ingress of water: not protected)
Display	Custom LCD

Environmental Conditions
Environment	Dry, without moisture condensation indoor or outdoor use
Operating temperature	+0 °C … +40 °C / +32 °F … +104 °F
Storage	–25 °C … +65 °C / –13 °F … +149 °F Dry, without moisture condensation; without battery pack

Power Supply
Power Source	2 × AA Alkaline batteries
Battery Life	>20,000 readings
Auto power dow	After • 30 min of measured darkness • 15 min from switch on with no initial pairing to a PV:1525 and no button presses • 12 hours after first switch on
Onboard Memory	5000 datasets

Electrical Safety
Pollution degree	2

Electromagnetic Compatibility (EMC)
Interference emission	IEC 61326-1, class A
Interference immunity	IEC 61326-1

Connectivity
Sample rate	Sample rate1 ... 60 minutes (user-definable)
Connection to PV:1525	Wireless (range c. 150 m – line of sight); Long-Range RF
Frequency band(s)	433.375 MHz … 434.625 MHz
Transmit power range(s)	4.89 dBm ERP
Modulation type(s)	CSS
Channel spacing(s)	250 kHz
Radio spectrum efficiency (Art. 3.2)	ETSI EN 300 220-2 V3.2.1
Antenna type and gain	FPC antenna, 2.8 dBi peak gain

Irradiance Measurement
Display range	100 ... 1999 W/m2 / 30 ... 633 BTU/hr-ft2
Measurement range	100 ... 1500W/m2 / 30 ... 475 BTU/hr-ft2
Resolution	1 W/m2 / 1 BTU/hr-ft2

Temperature Measurement
Display range	–30 °C ... +125 °C
Measuring range	–30 °C ... +125 °C
Resolution	1°

Compass Bearing
Display range	0° ... 360°
Measuring range	0° ... 360°
Resolution	1°

Inclinometer
Display range	0° ... 90°
Measurement range	0° ... 90°
Resolution	1°

Mechanical Design
Weight	Approx. 0.25 kg / 0.6 lb (without batteries)
Dimensions	Approx. 14.8 cm × 8.0 cm × 3.3 cm / 5.8“ × 3.2“ × 1.3“
Protective system	Housing: IP40 as per IEC 60529 (Protection against ingress of solid foreign objects: ≥ 1.0 mm / 0.039” Ø; protection against ingress of water: not protected)
Display	Custom LCD

Environmental Conditions
Environment	Dry, without moisture condensation indoor or outdoor use
Operating temperature	+0 °C … +40 °C / +32 °F … +104 °F
Storage	–25 °C … +65 °C / –13 °F … +149 °F Dry, without moisture condensation; without battery pack

Power Supply
Power Source	2 × AA Alkaline batteries
Battery Life	>20,000 readings
Auto power dow	After • 30 min of measured darkness • 15 min from switch on with no initial pairing to a PV:1525 and no button presses • 12 hours after first switch on
Onboard Memory	5000 datasets

Electromagnetic Compatibility (EMC)
Interference emission	IEC 61326-1, class A
Interference immunity	IEC 61326-1

Connectivity
Sample rate	Sample rate1 ... 60 minutes (user-definable)
Connection to PV:1525	Wireless (range c. 150 m – line of sight); Long-Range RF
Frequency band(s)	433.375 MHz … 434.625 MHz
Transmit power range(s)	4.89 dBm ERP
Modulation type(s)	CSS
Channel spacing(s)	250 kHz
Radio spectrum efficiency (Art. 3.2)	ETSI EN 300 220-2 V3.2.1
Antenna type and gain	FPC antenna, 2.8 dBi peak gain
